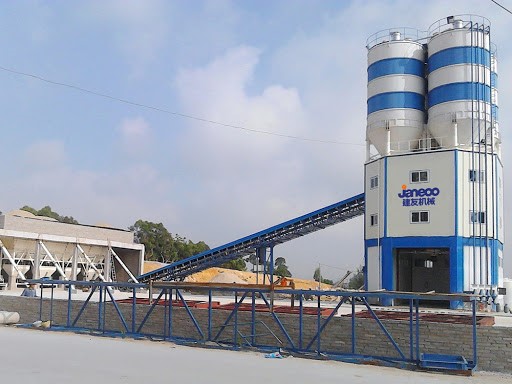

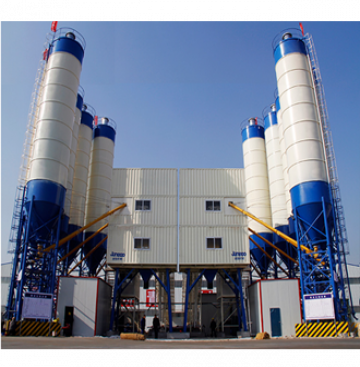

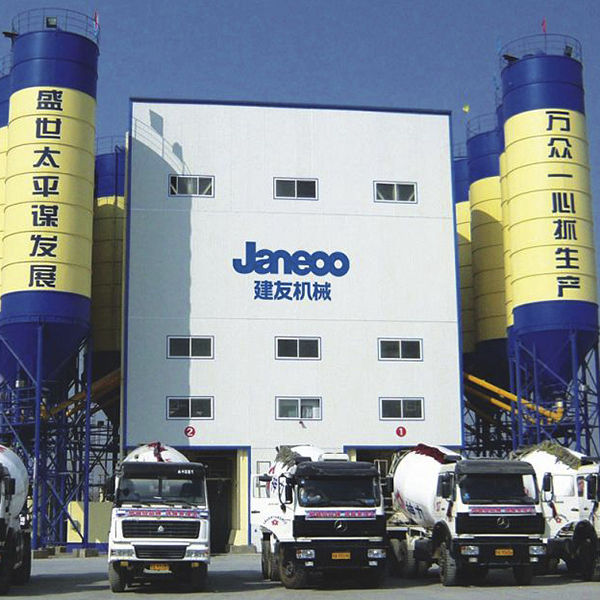

Shantui - Concrete Batching Plant
The Shantui Concrete Batching Plant is applicable for the construction of roads, high-speed railways, ports, bridges, airports, and hydropower projects. Domestic first-class, high production efficiency; modular design makes it convenient to install and transfer; comprises various combinations and suitable for various venues
Technical Features:
- The feeding belt conveyor is adopted to achieve high productivity.
- The modular design features a compact structure, easy installation, and transfer
- Has diversified combinations to adapt to diversified site arrangements
Batching Plant Models:
HZS30Q | HZS60Q | HZS90Q | HZS120Q | HZS180Q
Parameters:
|
Model |
HZS60Q |
HZS90Q |
HZS120Q |
HZS180Q |
HZS30Q |
|
|
Theoretical Productivity (m3/h) |
60 |
90 |
120 |
180 |
30 |
|
|
Main Mixing Unit |
Model |
JS1000 |
JS1500 |
JS2000 |
JS3000 |
JS500 |
|
Mixing Power (kW) |
2×18.5 |
2×30 |
2×37 |
2×55 |
18.5 |
|
|
Discharge Capacity (m3) |
1 |
1.5 |
2 |
3 |
0.5 |
|
|
Aggregate Size (gravel/pebble mm) |
≤60/80 |
≤60/80 |
≤60/80 |
≤60/80 |
≤60/80 |
|
|
Aggregate Bin |
Bin Capacity (m3) |
12 |
12 |
20 |
20 |
4 |
|
Belt Conveyor capacity (t/h) |
300 |
450 |
600 |
800 |
300 |
|
|
Weighing Range and Metering Accuracy |
Aggregate (kg) |
2500±2% |
3000±2% |
4x(2000±2%) |
4x（3000±2%） |
1500±2% |
|
Cement (kg) |
500±1% |
800±1% |
1000±1% |
1500±1% |
300±1% |
|
|
Coal Ash (kg) |
150±1% |
200±1% |
400±1% |
600±1% |
-------
|
|
|
Water (kg) |
200±1% |
300±1% |
400±1% |
600±1% |
150±1% |
|
|
Additive (kg) |
20±1% |
30±1% |
40±1% |
60±1% |
20±1% |
|
|
Discharge height(m) |
3.8 |
3.8 |
3.8 |
3.8 |
3.8 |
|
